AUTOMATION OF HORIZONTAL DIE CASTING MACHINES
MANIPULATORS FOR BLOWING AND COATING OF THE PRESS FORM MPS SERIES

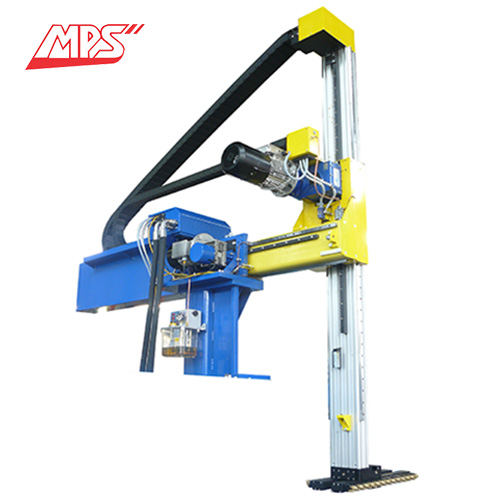

SPRAYER MANIPULATOR SM-3
Specialized manipulator with electro drive for blowing and coating of the press form of a die casting machine, for automation of cold chamber machines with locking force range from 640 to 1050 tons.
Machine Type
SM-3
Drive System
AC / Servo
Number of Nozzles – Standard / Optional
2 x 12 / 4 x 16
Blowing + Spraying Circuits – Standard / Optional
2 + 6
Number of Axes
2-Axis
Passive Horizontal Adjustment
– mm
Passive Vertical Adjustment
– mm
Horizontal Stroke
1200 mm
Vertical Stroke
1500 mm
Horizontal Velocity
1 m/s
Vertical Velocity
0.8 m/s
Air Consumption at Coating
120 l/min
Air Consumption at Blowing
200 l/min
Liquid Tank
150 l
DCM Range
640 – 1050 t
DCM Type
Cold Chamber
