AUTOMATION OF HORIZONTAL DIE CASTING MACHINES
MANIPULATORS FOR BLOWING AND COATING OF THE PRESS FORM MPS SERIES

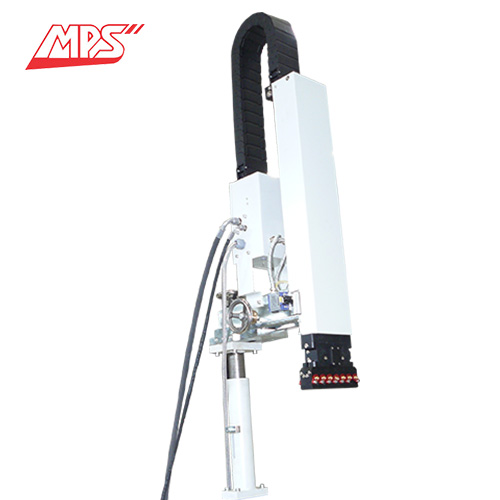

SPRAYER MANIPULATOR SH-1P
Specialized manipulator with pneumatic drive for blowing and coating of the press form of a die casting machine, for automation of hot chamber machines with locking force range from 50 to 80 tons.
Machine Type
SH-1P
Drive System
Pneumatic
Number of Nozzles – Standard / Optional
2 x 7
Blowing + Spraying Circuits – Standard / Optional
1 + 1
Number of Axes
1-Axis
Passive Horizontal Adjustment
190 mm
Passive Vertical Adjustment
50 mm
Horizontal Stroke
– mm
Vertical Stroke
650 mm
Horizontal Velocity
– m/s
Vertical Velocity
2 m/s
Air Consumption at Coating
104 l/min
Air Consumption at Blowing
140 l/min
Liquid Tank
25 l
DCM Range
50 – 80 t
DCM Type
Hot Chamber
