AUTOMATION OF HORIZONTAL DIE CASTING MACHINES
MANIPULATORS FOR BLOWING AND COATING OF THE PRESS FORM MPS SERIES

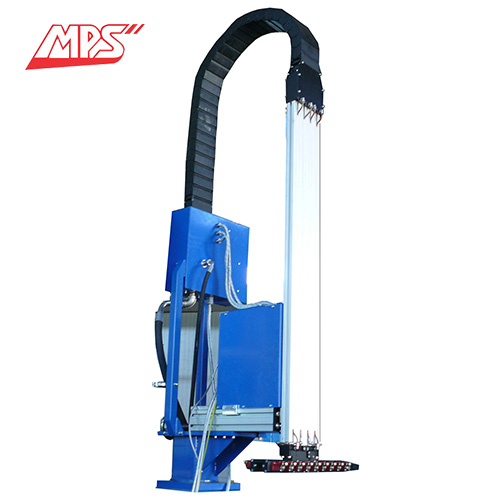

SPRAYER MANIPULATOR SC
Specialized manipulator with electro drive for blowing and coating of the press form of a die casting machine, for automation of cold chamber machines with locking force range from 130 to 380 tons.
Machine Type
SC
Drive System
Servo
Number of Nozzles – Standard / Optional
2 x 9 / 4 х 9
Blowing + Spraying Circuits – Standard / Optional
2 + 2 / 6
Number of Axes
1-Axis
Passive Horizontal Adjustment
360 / 460 mm
Passive Vertical Adjustment
– mm
Horizontal Stroke
– mm
Vertical Stroke
900 mm
Horizontal Velocity
– m/s
Vertical Velocity
3 m/s
Air Consumption at Coating
83 l/min
Air Consumption at Blowing
120 l/min
Liquid Tank
150 l
DCM Range
130 – 380 t
DCM Type
Cold Chamber
